Car Radio RD 5683 SM

Car Radio RD 5683 SM; Videoton; (ID = 1463355) Car Radio

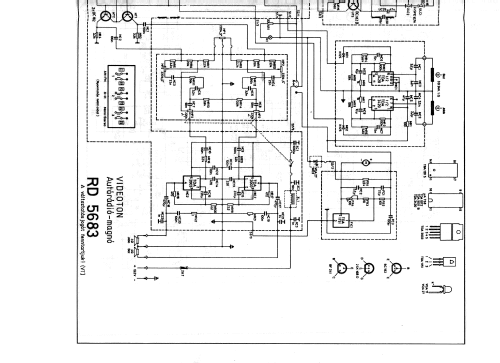

Car Radio RD 5683 SM; Videoton; (ID = 1463356) Car Radio
Car Radio RD 5683 SM; Videoton; (ID = 1115326) Car Radio Car Radio RD 5683 SM; Videoton; (ID = 1115327) Car Radio

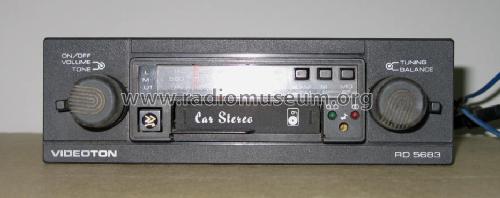

Car Radio RD 5683 SM; Videoton; (ID = 1115328) Car Radio Car Radio RD 5683 SM; Videoton; (ID = 1115329) Car Radio
Car Radio RD 5683 SM; Videoton; (ID = 1115330) Car Radio Car Radio RD 5683 SM; Videoton; (ID = 1115332) Car Radio
Car Radio RD 5683 SM; Videoton; (ID = 1115333) Car Radio Car Radio RD 5683 SM; Videoton; (ID = 1115334) Car Radio
Car Radio RD 5683 SM; Videoton; (ID = 1404068) Car Radio Car Radio RD 5683 SM; Videoton; (ID = 1404071) Car Radio
Use red slider bar for more.
Car Radio RD 5683 SM; Videoton; (ID = 1115326) Car Radio
Videoton;: Car Radio RD 5683 SM [Car Radio] ID = 1115326 933x385
Select picture or schematic to display from thumbnails on the right and click for download.
For model Car Radio RD 5683 SM, Videoton; Székesfehérvár:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1984/1985 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 7: 2SK168 BF241 BF241 BF241 BC182 BC182 BC182 TBA120 TDA1072 µA758 TDA1001 TDA1151 TDA2003 TDA2003
Main principle Superheterodyne (common); ZF/IF 465/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 7 W (undistorted)
from Radiomuseum.org Model: Car Radio RD 5683 SM - Videoton; Székesfehérvár
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 150 x 45 x 178 mm / 5.9 x 1.8 x 7 inch
Notes

Das Autoradio RD5683 empfängt LW, MW und UKW nach OIRT und ist mit einem Kassettenspieler kombiniert. Ausgangsleistung 2x 3,5 Watt.

Frequency response cassette player: 150-15000 Hz.

Net weight (2.2 lb = 1 kg) 0.950 kg / 2 lb 1.5 oz (2.093 lb)
Source of data -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
