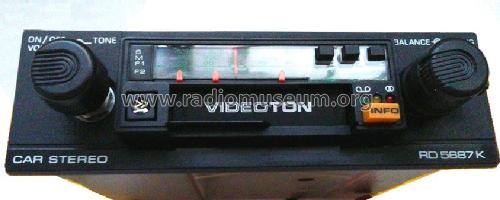

Car Stereo RD5687 K

Car Stereo RD5687 K; Videoton; (ID = 2314197) Car Radio Car Stereo RD5687 K; Videoton; (ID = 1861741) Car Radio
Car Stereo RD5687 K; Videoton; (ID = 2048358) Car Radio Car Stereo RD5687 K; Videoton; (ID = 2048359) Car Radio
Car Stereo RD5687 K; Videoton; (ID = 2048360) Car Radio Car Stereo RD5687 K; Videoton; (ID = 2048361) Car Radio
Car Stereo RD5687 K; Videoton; (ID = 2048362) Car Radio Car Stereo RD5687 K; Videoton; (ID = 2048363) Car Radio
Car Stereo RD5687 K; Videoton; (ID = 2216777) Car Radio Car Stereo RD5687 K; Videoton; (ID = 2216778) Car Radio
Use red slider bar for more.
Car Stereo RD5687 K; Videoton; (ID = 2314197) Car Radio
Videoton;: Car Stereo RD5687 K [Car Radio] ID = 2314197 1400x448
Select picture or schematic to display from thumbnails on the right and click for download.
For model Car Stereo RD5687 K, Videoton; Székesfehérvár:
Perneky Sándor - Rádiómúzeum Alapítvány, Verőce, Hungary, radiomuzeum.hu

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1988 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 19:
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Car Stereo RD5687 K - Videoton; Székesfehérvár
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 150 x 45 x 178 mm / 5.9 x 1.8 x 7 inch
Notes

Has both CCIR and OIRT FM bands. FM stereo. Switchable Traffic Info system (ARI?).
LED indicators for Stereo, Traffic Info and tape. Cassette deck with fast forward.

SW: 5,95- ~ 7MHz

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Source of data -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
