Disco Star RA-5320SG
Use red slider bar for more.
Videoton;: Disco Star RA-5320SG [Radio] ID = 709720 933x331
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
VTTV | ||||
|---|---|---|---|---|---|
| Year: 1978 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 11: |
| Main principle | Superheterodyne (common); ZF/IF 465/10700 kHz |
|---|---|
| Wave bands | Broadcast, 2 Short Wave plus FM or UHF. |

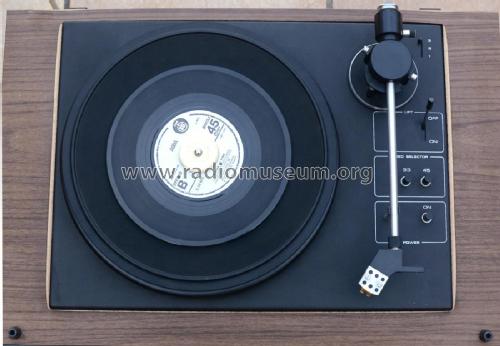

| Details | Record Player (not changer) |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | 6 W (unknown quality) |
| from Radiomuseum.org | Model: Disco Star RA-5320SG - Videoton; Székesfehérvár |
| Material | Wooden case |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 510 x 0 x 0 mm / 20.1 x 0 x 0 inch |
| Notes | 4 IC, FM stereo, FM: 66 - 104 MHz, 3 FM program. |
| Price in first year of sale | 7'670.00 HUF |
| Source of data | -- Original prospect or advert |
Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
