EA-64F

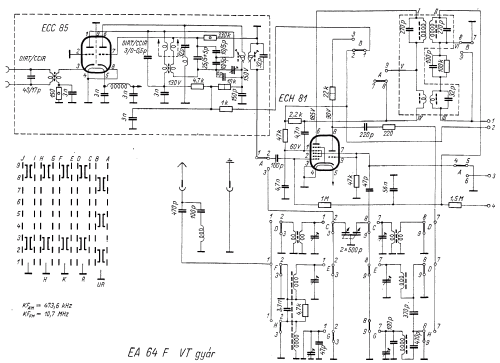

EA-64F; Videoton; (ID = 316398) Radio

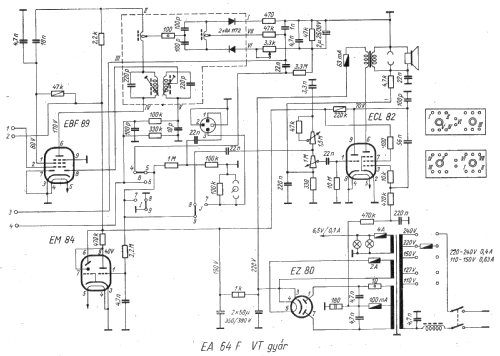

EA-64F; Videoton; (ID = 316399) Radio
EA-64F; Videoton; (ID = 379818) Radio
Use red slider bar for more.
EA-64F; Videoton; (ID = 379818) Radio
Videoton;: EA-64F [Radio] ID = 379818 500x337
Select picture or schematic to display from thumbnails on the right and click for download.
For model EA-64F, Videoton; Székesfehérvár

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1963–1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EBF89 ECL82 EM84 EZ80
Main principle ZF/IF 473,6 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: EA-64F - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 400 x 260 x 180 mm / 15.7 x 10.2 x 7.1 inch
Notes URH (OIRT) 63-74MHz.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Source of data Radio es Televizio Vevö keszülekek 1964-66

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.



All listed radios etc. from Videoton; Székesfehérvár
Here you find 679 models, 635 with images and 177 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
