EA53F / II
Videoton;: EA53F / II [Radio] ID = 1579148 933x1261

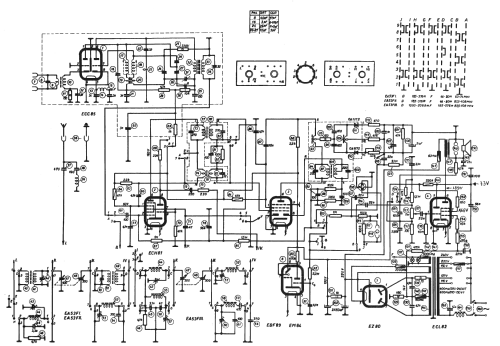

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
VTTV | ||||
|---|---|---|---|---|---|
| Year: 1961–1963 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | ECC85 ECH81 EBF89 ECL82 EM84 EZ80 | ||||
| Semiconductors (the count is only for transistors) | 6: |
| Main principle | Superheterodyne (common); ZF/IF 473,6/10700 kHz |
|---|---|
| Wave bands | Broadcast, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch |
| Power out | 1.5 W (unknown quality) |
| from Radiomuseum.org | Model: EA53F / II - Videoton; Székesfehérvár |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 400 x 260 x 180 mm / 15.7 x 10.2 x 7.1 inch |
| Notes | Model EA53F exists in three versions, differing in the wave band coverage only. Version I MW: 520-1620 kHz SW: 5.8-18.5 MHz FM: 66-73 MHz Version II MW: 520-1620 kHz SW: 5.8-18.5 MHz FM: 87.5-108 MHz Version III MW: 520-1620 kHz LW: 145-300 kHz FM: 87.5-108 MHz
|
| Net weight (2.2 lb = 1 kg) | 9 kg / 19 lb 13.2 oz (19.824 lb) |
| Price in first year of sale | 1'720.00 HUF |
| Source of data | Radio es Televizio Vevö Keszülekek, 1960-63 |
Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
