GR4900

GR4900; Videoton; (ID = 1701582) Radio GR4900; Videoton; (ID = 396835) Radio
GR4900; Videoton; (ID = 1701583) Radio GR4900; Videoton; (ID = 1701584) Radio
GR4900; Videoton; (ID = 1701585) Radio GR4900; Videoton; (ID = 1701586) Radio
GR4900; Videoton; (ID = 1701587) Radio GR4900; Videoton; (ID = 1701588) Radio
GR4900; Videoton; (ID = 1701590) Radio
Use red slider bar for more.
GR4900; Videoton; (ID = 1701582) Radio
Videoton;: GR4900 [Radio] ID = 1701582 731x901
Select picture or schematic to display from thumbnails on the right and click for download.
For model GR4900, Videoton; Székesfehérvár:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1968–1971 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EAF801 ECL86 EM87
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: GR4900 - Videoton; Székesfehérvár
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Dimensions (WHD) 730 x 280 x 210 mm / 28.7 x 11 x 8.3 inch

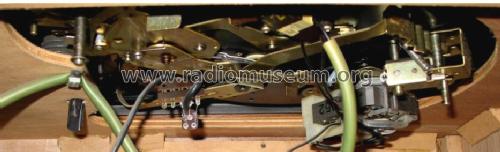

Notes Gerät elektrisch identisch mit Modell R4900, aber eingebauten Plattenwechsler. With Garrard chassis 1025, 16/33/45/78 UpM
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Mentioned in Radio es Televizio Vevö keszülekek 1967-69

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
