H1015/10 15 Ohm

H1015/10 15 Ohm; Videoton; (ID = 1304948) Speaker-P H1015/10 15 Ohm; Videoton; (ID = 1304949) Speaker-P
H1015/10 15 Ohm; Videoton; (ID = 1304950) Speaker-P H1015/10 15 Ohm; Videoton; (ID = 1304951) Speaker-P
Use red slider bar for more.

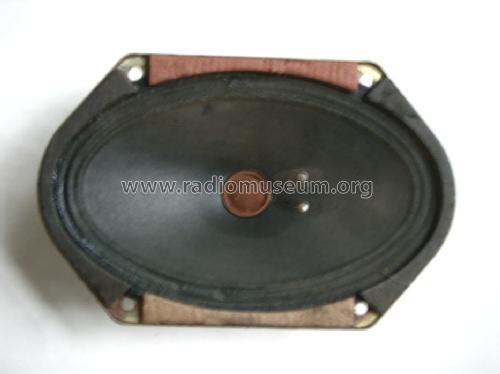

H1015/10 15 Ohm; Videoton; (ID = 1304948) Speaker-P
Videoton;: H1015/10 15 Ohm [Speaker-P] ID = 1304948 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model H1015/10 15 Ohm, Videoton; Székesfehérvár:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1965 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: H1015/10 15 Ohm - Videoton; Székesfehérvár
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 150 x 100 x 59 mm / 5.9 x 3.9 x 2.3 inch
Notes

2 VA / 15 Ohm, BaFe, 21100 Maxwell, 10000 Gauss. 100-10000 Hz.

Net weight (2.2 lb = 1 kg) 0.430 kg / 0 lb 15.2 oz (0.947 lb)
Source of data -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
