Hi-Fi Box DC-1680

Hi-Fi Box DC-1680; Videoton; (ID = 1183584) Speaker-P Hi-Fi Box DC-1680; Videoton; (ID = 1183581) Speaker-P
Hi-Fi Box DC-1680; Videoton; (ID = 1183582) Speaker-P Hi-Fi Box DC-1680; Videoton; (ID = 1183583) Speaker-P
Hi-Fi Box DC-1680; Videoton; (ID = 1183585) Speaker-P Hi-Fi Box DC-1680; Videoton; (ID = 1183586) Speaker-P
Hi-Fi Box DC-1680; Videoton; (ID = 1573841) Speaker-P Hi-Fi Box DC-1680; Videoton; (ID = 1573842) Speaker-P
Hi-Fi Box DC-1680; Videoton; (ID = 1573843) Speaker-P Hi-Fi Box DC-1680; Videoton; (ID = 1573844) Speaker-P
Use red slider bar for more.
Hi-Fi Box DC-1680; Videoton; (ID = 1183584) Speaker-P
Videoton;: Hi-Fi Box DC-1680 [Speaker-P] ID = 1183584 933x738
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hi-Fi Box DC-1680, Videoton; Székesfehérvár:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1980 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out 35 W (unknown quality)
from Radiomuseum.org Model: Hi-Fi Box DC-1680 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 470 x 290 x 220 mm / 18.5 x 11.4 x 8.7 inch
Notes Woofer: 16 cm, Midrange: 10 cm, Tweeter: 6.5 cm, Frequency range: 50 Hz - 20 kHz.
Net weight (2.2 lb = 1 kg) 6.4 kg / 14 lb 1.6 oz (14.097 lb)

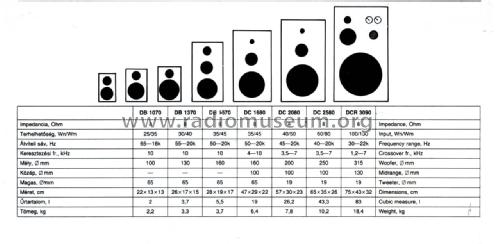

Source of data -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Videoton; Székesfehérvár
Here you find 673 models, 629 with images and 176 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
