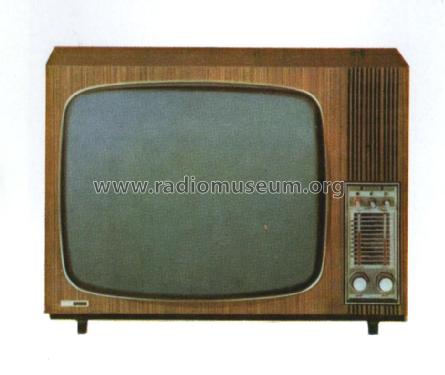

Inter Sztár TA-4201
Use red slider bar for more.
Videoton;: Inter Sztár TA-4201 [Television] ID = 708373 480x933

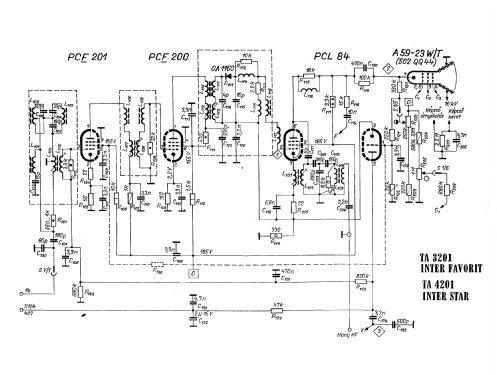

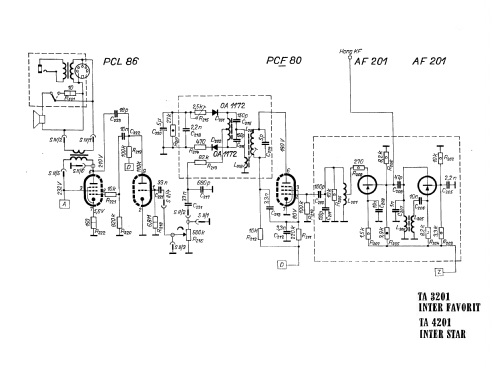

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
VTTV | ||||
|---|---|---|---|---|---|
| Year: 1970 | Category: Television Receiver (TV) or Monitor | ||||
| Valves / Tubes | 10: PCF200 PCF201 PCF80 PCL84 PCL85 PCL86 PL500 PY88 DY806 A59-23W | ||||
| Semiconductors (the count is only for transistors) | 7: AF109 AF106 AF106 AF139 AF139 AF201 AF201 |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Wave Bands given in the notes. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | 1.2 W (unknown quality) |
| from Radiomuseum.org | Model: Inter Sztár TA-4201 - Videoton; Székesfehérvár |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 720 x 525 x 398 mm / 28.3 x 20.7 x 15.7 inch |
| Notes | Screen: 59 cm. VHF-UHF, OIRT-CCIR. |
| Net weight (2.2 lb = 1 kg) | 32 kg / 70 lb 7.8 oz (70.485 lb) |
| Source of data | -- Original prospect or advert |
Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
