Lido RB-3602

Lido RB-3602; Videoton; (ID = 972398) Radio Lido RB-3602; Videoton; (ID = 973171) Radio

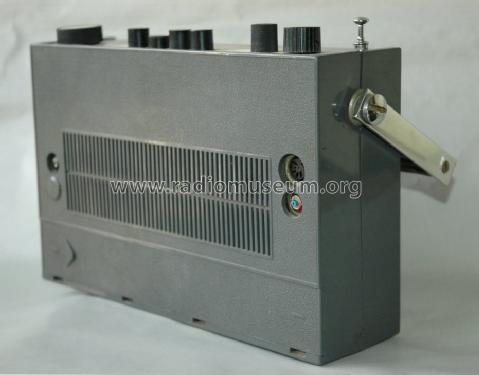

Lido RB-3602; Videoton; (ID = 973172) Radio Lido RB-3602; Videoton; (ID = 973173) Radio

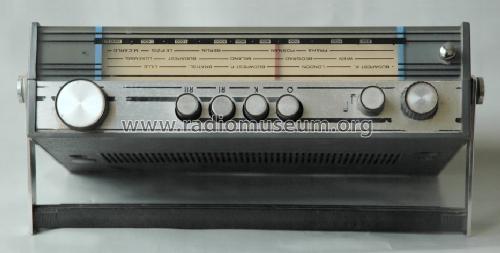

Lido RB-3602; Videoton; (ID = 973174) Radio
Use red slider bar for more.
Lido RB-3602; Videoton; (ID = 972398) Radio
Videoton;: Lido RB-3602 [Radio] ID = 972398 855x545
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lido RB-3602, Videoton; Székesfehérvár:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1968–1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.45 W (unknown quality)
from Radiomuseum.org Model: Lido RB-3602 - Videoton; Székesfehérvár
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 170 x 70 mm / 10.2 x 6.7 x 2.8 inch
Notes SW1: Fishery band.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Mentioned in Radio es Televizio Vevö keszülekek 1967-69

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
