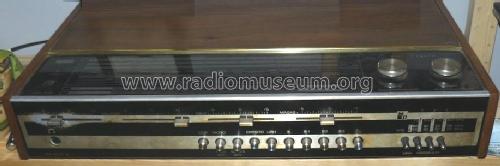

Orpheus RA-4324S

Orpheus RA-4324S; Videoton; (ID = 428471) Radio Orpheus RA-4324S; Videoton; (ID = 713351) Radio
Orpheus RA-4324S; Videoton; (ID = 713352) Radio Orpheus RA-4324S; Videoton; (ID = 1471568) Radio
Orpheus RA-4324S; Videoton; (ID = 1797493) Radio Orpheus RA-4324S; Videoton; (ID = 1797494) Radio
Orpheus RA-4324S; Videoton; (ID = 1797495) Radio Orpheus RA-4324S; Videoton; (ID = 1797496) Radio
Orpheus RA-4324S; Videoton; (ID = 1797497) Radio Orpheus RA-4324S; Videoton; (ID = 1797498) Radio
Use red slider bar for more.

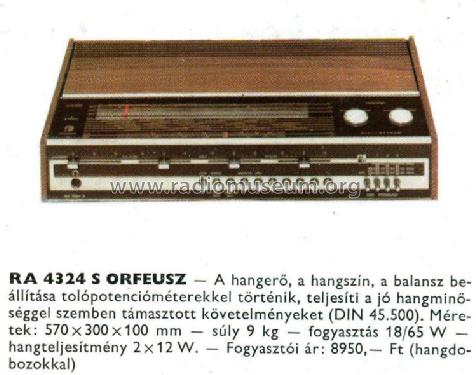

Orpheus RA-4324S; Videoton; (ID = 428471) Radio
Videoton;: Orpheus RA-4324S [Radio] ID = 428471 750x590
Select picture or schematic to display from thumbnails on the right and click for download.
For model Orpheus RA-4324S, Videoton; Székesfehérvár

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1975 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 38:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 20 W (unknown quality)
from Radiomuseum.org Model: Orpheus RA-4324S - Videoton; Székesfehérvár
Material Various materials
Shape Book-shelf unit.
Dimensions (WHD) 570 x 100 x 300 mm / 22.4 x 3.9 x 11.8 inch
Notes Stereo, FM: OIRT & CCIR, 3 program.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)

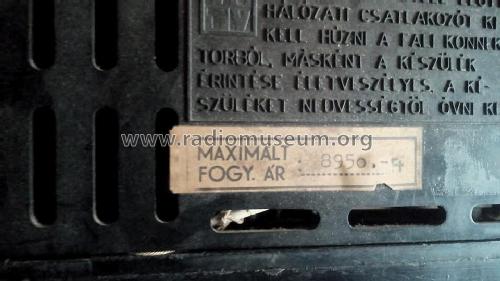

Price in first year of sale 8'950.00 HUF
Literature/Schematics (1) Rences Tamás: Rádió Kapcsolások II.,Budapest, 1975.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
