Pluto RC4623

Pluto RC4623; Videoton; (ID = 391399) Radio Pluto RC4623; Videoton; (ID = 479425) Radio
Pluto RC4623; Videoton; (ID = 479426) Radio Pluto RC4623; Videoton; (ID = 479427) Radio
Pluto RC4623; Videoton; (ID = 479428) Radio Pluto RC4623; Videoton; (ID = 479429) Radio
Pluto RC4623; Videoton; (ID = 554817) Radio Pluto RC4623; Videoton; (ID = 554819) Radio
Pluto RC4623; Videoton; (ID = 554821) Radio Pluto RC4623; Videoton; (ID = 713431) Radio
Use red slider bar for more.

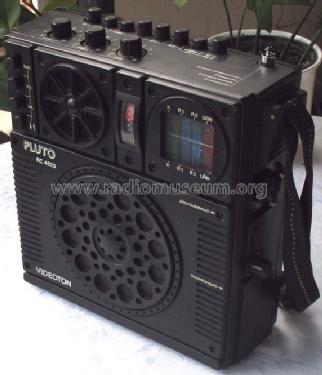

Pluto RC4623; Videoton; (ID = 391399) Radio
Videoton;: Pluto RC4623 [Radio] ID = 391399 572x666
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pluto RC4623, Videoton; Székesfehérvár:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation Hungary.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1979 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 230 6× 1,5 Volt

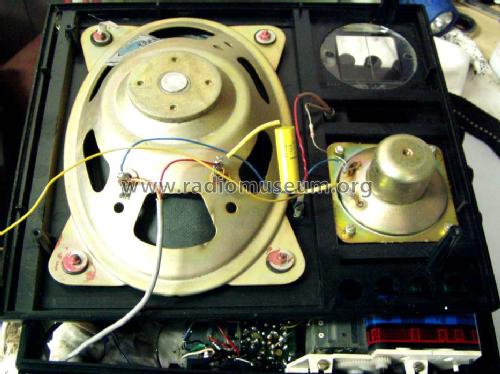

Loudspeaker 2 Loudspeakers
Power out 2.2 W (unknown quality)
from Radiomuseum.org Model: Pluto RC4623 - Videoton; Székesfehérvár
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 235 x 260 x 95 mm / 9.3 x 10.2 x 3.7 inch
Notes 2 IC-s. FM: OIRT and CCIR.
Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)
Price in first year of sale 3'350.00 HUF
Source of data - - Data from my own collection
Mentioned in -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
