• Year
  • 1965–1968
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 134928
    • Brand: VTTV

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

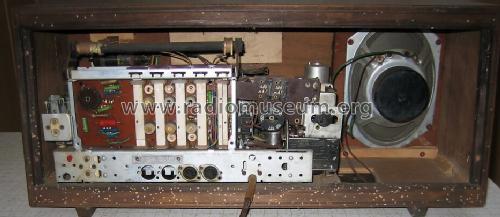

  • Model: R4400-111 - Videoton; Székesfehérvár
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 505 x 210 x 170 mm / 19.9 x 8.3 x 6.7 inch
  • Net weight (2.2 lb = 1 kg)
  • 6 kg / 13 lb 3.5 oz (13.216 lb)
  • Price in first year of sale
  • 1,750.00 HUF
  • Author
  • Model page created by Klemens Rhode. See "Data change" for further contributors.
