R-4330 114

R-4330; Videoton; (ID = 2209144) Radio
R-4330; Videoton; (ID = 613501) Radio R-4330; Videoton; (ID = 613502) Radio

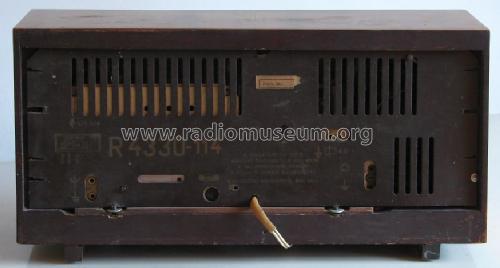

R-4330; Videoton; (ID = 613503) Radio R-4330; Videoton; (ID = 1449788) Radio
R-4330; Videoton; (ID = 1449789) Radio R-4330; Videoton; (ID = 1449790) Radio
R-4330; Videoton; (ID = 1449791) Radio R-4330; Videoton; (ID = 1449792) Radio
R-4330; Videoton; (ID = 1449793) Radio R-4330; Videoton; (ID = 1449794) Radio
Use red slider bar for more.
R-4330; Videoton; (ID = 613501) Radio
Videoton;: R-4330 [Radio] ID = 613501 920x602
Select picture or schematic to display from thumbnails on the right and click for download.
For model R-4330 114, Videoton; Székesfehérvár

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1966/1967 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH81 EBF89 ECL86 EM87
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: R-4330 [114] - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 240 x 175 mm / 18.9 x 9.4 x 6.9 inch
Notes Selenium rectifier.
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Source of data - - Data from my own collection

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
