R-4351

R-4351; Videoton; (ID = 1592520) Radio
Use red slider bar for more.
R-4351; Videoton; (ID = 1592520) Radio

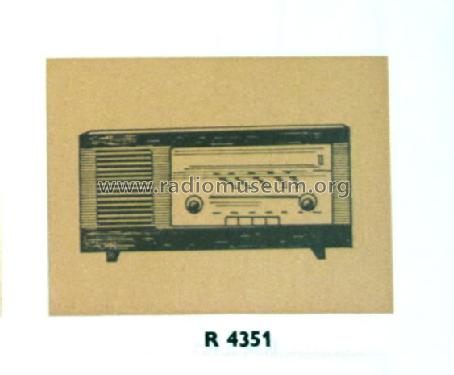

Videoton;: R-4351 [Radio] ID = 1592520 564x465
Select picture or schematic to display from thumbnails on the right and click for download.
For model R-4351, Videoton; Székesfehérvár:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1963–1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF89 ECL86 EZ80 EM84
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100; 127; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: R-4351 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 230 x 170 mm / 18.9 x 9.1 x 6.7 inch
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Literature/Schematics (2) RAVILL III. Katalógus, BP, 1974.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
