• Country
• Hungary

• Manufacturer / Brand
• Videoton; Székesfehérvár

• Year
• 1968–1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 124504

• • Brand: VTTV

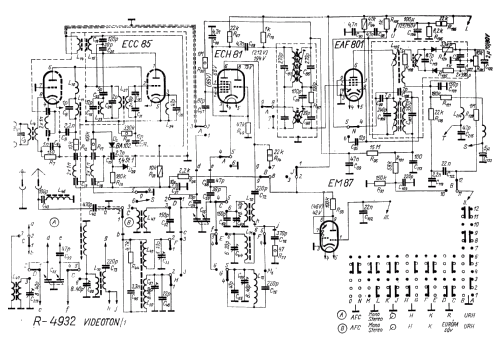

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EAF801 ECL86 EM87 ECL86

• Number of Transistors
• 4

• Semiconductors
• OC1079 AF137 AF137 AF137

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 4.6 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: R-4932 - Videoton; Székesfehérvár

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 640 x 160 x 170 mm / 25.2 x 6.3 x 6.7 inch

• Notes

• Stereo Steuergerät.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Source of data
• Radio es Televizio Vevö keszülekek 1967-69

• Literature/Schematics (1)
• Kókai-Varsányi: Sztereó rádiók szervizkönyve, Budapest 1984.

• Author
• Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
