For model Rapsody GR4900-110, Videoton; Székesfehérvár:
Rapsody, GR4900 with Garrard turntable, Model: 1025. Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1968 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EAF801 ECL86 EM87
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out 2.7 W (unknown quality)
from Radiomuseum.org Model: Rapsody GR4900-110 - Videoton; Székesfehérvár
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Dimensions (WHD) 820 x 390 x 345 mm / 32.3 x 15.4 x 13.6 inch
Notes URH 63 bis 74 MHz. Turntables type: Garrard 1025.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)

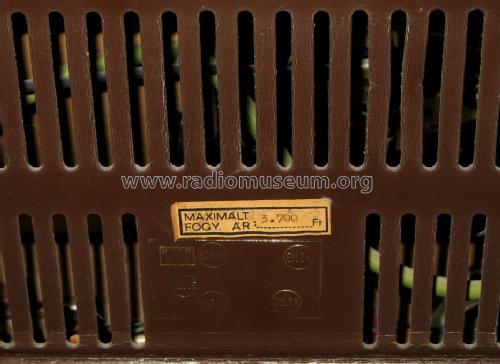

Price in first year of sale 3'700.00 HUF
Source of data - - Data from my own collection

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
