Stereo Tuner RT 6303 S
Use red slider bar for more.

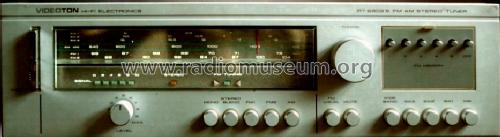

Videoton;: Stereo Tuner RT 6303 S [Radio] ID = 512037 933x257
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
VTTV | ||||
|---|---|---|---|---|---|
| Year: 1982–1986 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 18: |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, more than 2 SW bands plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | - For headphones or amp. |
| Power out | |
| from Radiomuseum.org | Model: Stereo Tuner RT 6303 S - Videoton; Székesfehérvár |
| Material | Metal case |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 440 x 115 x 240 mm / 17.3 x 4.5 x 9.4 inch |
| Notes | 8 IC-s. FM: OIRT & CCIR. |
| Net weight (2.2 lb = 1 kg) | 6 kg / 13 lb 3.5 oz (13.216 lb) |
| Price in first year of sale | 5'950.00 HUF |
| Source of data | -- Original-techn. papers. |
Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
