Sirály RB2602R

Sirály RB2602R; Videoton; (ID = 235737) Radio
Sirály RB2602R; Videoton; (ID = 388670) Radio Sirály RB2602R; Videoton; (ID = 826262) Radio
Sirály RB2602R; Videoton; (ID = 1171480) Radio Sirály RB2602R; Videoton; (ID = 1171481) Radio
Sirály RB2602R; Videoton; (ID = 1171482) Radio Sirály RB2602R; Videoton; (ID = 1171483) Radio
Sirály RB2602R; Videoton; (ID = 1171484) Radio Sirály RB2602R; Videoton; (ID = 1171488) Radio
Sirály RB2602R; Videoton; (ID = 1471237) Radio Sirály RB2602R; Videoton; (ID = 1471238) Radio
Use red slider bar for more.
Sirály RB2602R; Videoton; (ID = 388670) Radio
Videoton;: Sirály RB2602R [Radio] ID = 388670 483x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sirály RB2602R, Videoton; Székesfehérvár:
Quelle:The history of Hungarian radio Broadcasting and Catalogue of Radio Receivers Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1968–1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage and/or dry batteries / 6 × 1,5 / 2 × 4,5 Volt

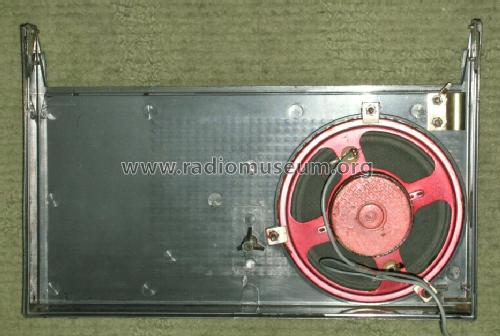

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Sirály RB2602R - Videoton; Székesfehérvár
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 245 x 160 x 65 mm / 9.6 x 6.3 x 2.6 inch
Notes KW-Bereich 5,9-12,1MHz Eisenlose Endstufe
Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Source of data Radio es Televizio Vevö keszülekek 1970-71

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
