Videoton;: Sirius RB4602 [Radio] ID = 437704 899x700

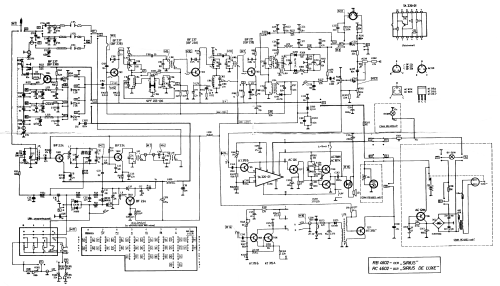

Select picture or schematic to display from thumbnails on the right and click for download.

For model Sirius RB4602 OCR, Videoton; Székesfehérvár:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:

Hungary

Manufacturer / Brand:

Videoton; Székesfehérvár

Brand

VTTV

Year: 1971–1975

Category: Broadcast Receiver - or past WW2 Tuner

Semiconductors (the count is only for transistors)

14: BF224 BF224 BF224 BF237 BF237 BF237 BF237 КТ315 КТ315 КТ315 КТ315 AC126 AC187 AC188

Main principle	Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits	6 AM circuit(s) 11 FM circuit(s)
Wave bands	Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage	Batteries / addl. power jack / 6 × 1,5 / 9 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15 cm = 5.9 inch
Power out	1.5 W (unknown quality)
from Radiomuseum.org	Model: Sirius RB4602 [OCR] - Videoton; Székesfehérvár
Material	Various materials
Shape	Portable set > 8 inch (also usable without mains)
Dimensions (WHD)	330 x 192 x 95 mm / 13 x 7.6 x 3.7 inch
Notes	Ext. power jack: DC 9 V. 1× IC. Wave bands: BC, 2×S, FM: OIRT, CCIR. 4 FM preselection.
Net weight (2.2 lb = 1 kg)	3 kg / 6 lb 9.7 oz (6.608 lb)
Literature/Schematics (1)	Radio es Televizio Vevö keszülekek 1970-71

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
