Sirius RB4602 CH

Sirius RB4602; Videoton; (ID = 1147203) Radio Sirius RB4602; Videoton; (ID = 436631) Radio

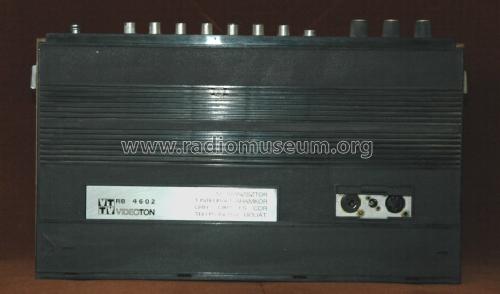

Sirius RB4602; Videoton; (ID = 1147201) Radio Sirius RB4602; Videoton; (ID = 1147204) Radio

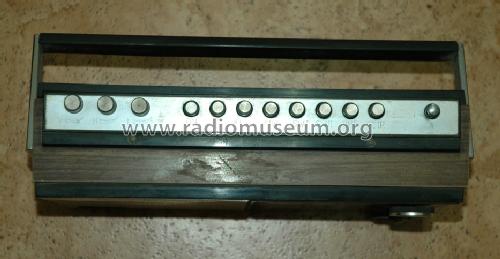

Sirius RB4602; Videoton; (ID = 1147205) Radio Sirius RB4602; Videoton; (ID = 1471242) Radio
Sirius RB4602; Videoton; (ID = 1471243) Radio Sirius RB4602; Videoton; (ID = 1471244) Radio
Sirius RB4602; Videoton; (ID = 1471245) Radio Sirius RB4602; Videoton; (ID = 1471246) Radio
Use red slider bar for more.
Sirius RB4602; Videoton; (ID = 1147203) Radio
Videoton;: Sirius RB4602 [Radio] ID = 1147203 933x583
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sirius RB4602 CH, Videoton; Székesfehérvár:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1971–1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 6 × 1,5 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 15 cm = 5.9 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Sirius RB4602 [CH] - Videoton; Székesfehérvár
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 330 x 192 x 95 mm / 13 x 7.6 x 3.7 inch
Notes Ext. power jack: DC 9 V. 1× IC. Wave bands: L, BC, FM: CCIR. 4 FM preselection.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Literature/Schematics (1) Radio es Televizio Vevö keszülekek 1970-71

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
