Speaker H1320/10F
Use red slider bar for more.

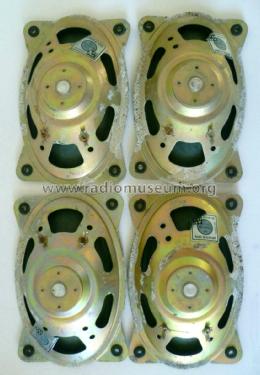

Videoton;: Speaker H1320/10F [Speaker-P] ID = 1055804 933x762
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
VTTV | ||||
|---|---|---|---|---|---|
| Year: 1979 | Category: Loudspeaker, headphone or earphone |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: Speaker H1320/10F - Videoton; Székesfehérvár |
| Material | Metal case |
| Shape | Chassis only or for «building in» |
| Notes | Z=4 Ohm, 60-15 000 Hz, 5 VA. |
Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
