Speaker H-0816/10M

Speaker H-0816/10M; Videoton; (ID = 816568) Speaker-P Speaker H-0816/10M; Videoton; (ID = 816569) Speaker-P

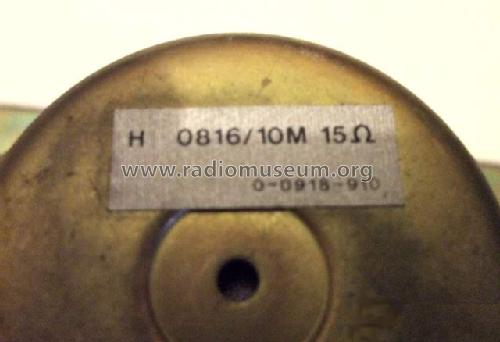

Speaker H-0816/10M; Videoton; (ID = 816570) Speaker-P Speaker H-0816/10M; Videoton; (ID = 839290) Speaker-P
Use red slider bar for more.
Speaker H-0816/10M; Videoton; (ID = 816568) Speaker-P
Videoton;: Speaker H-0816/10M [Speaker-P] ID = 816568 633x386
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker H-0816/10M, Videoton; Székesfehérvár:
STS Archív.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1980 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Speaker H-0816/10M - Videoton; Székesfehérvár
Material Metal case
Shape Chassis only or for «building in»
Notes 15 Ohm. Screw hole layout: 64×125 mm.
Source of data -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
