Speaker H 1015/9M
Use red slider bar for more.

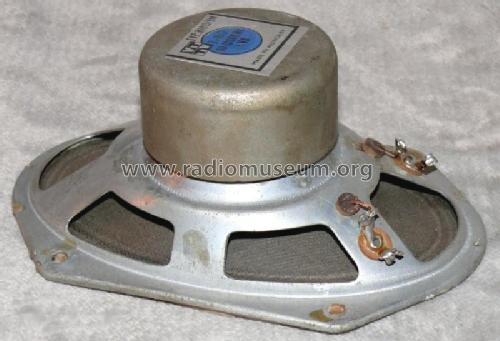

Videoton;: Speaker H 1015/9M [Speaker-P] ID = 1198465 800x547
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
VTTV | ||||
|---|---|---|---|---|---|
| Year: 1962 ?? | Category: Loudspeaker, headphone or earphone |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: Speaker H 1015/9M - Videoton; Székesfehérvár |
| Material | Metal case |
| Shape | Chassis only or for «building in» |
| Dimensions (WHD) | 150 x 100 x 59 mm / 5.9 x 3.9 x 2.3 inch |
| Notes | 2 VA / 15 Ohm, BaFe, 17900 Maxwell, 8500 Gauss. 100-10000 Hz. |
| Net weight (2.2 lb = 1 kg) | 0.620 kg / 1 lb 5.9 oz (1.366 lb) |
| Source of data | -- Original-techn. papers. |
Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
