Speaker H-1320/12

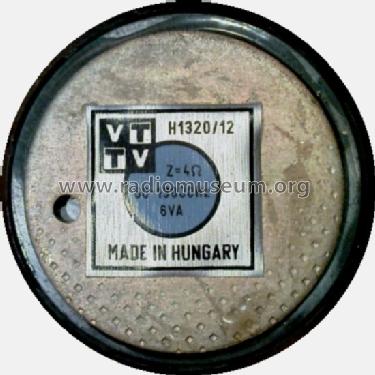

Speaker H-1320/12; Videoton; (ID = 1072555) Speaker-P Speaker H-1320/12; Videoton; (ID = 1072556) Speaker-P
Use red slider bar for more.
Speaker H-1320/12; Videoton; (ID = 1072555) Speaker-P
Videoton;: Speaker H-1320/12 [Speaker-P] ID = 1072555 488x326
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker H-1320/12, Videoton; Székesfehérvár:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1979 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Speaker H-1320/12 - Videoton; Székesfehérvár
Material Metal case
Shape Chassis only or for «building in»
Notes 4 Ohm, 6 VA, 60-13000 Hz.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
