Speaker HA13/10K

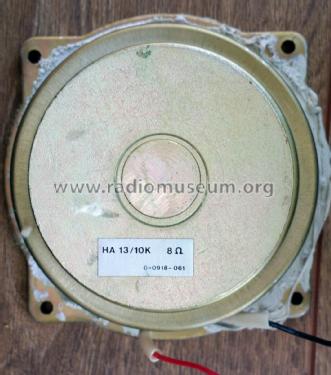

Speaker HA13/10K; Videoton; (ID = 1737243) Speaker-P Speaker HA13/10K; Videoton; (ID = 1737242) Speaker-P
Speaker HA13/10K; Videoton; (ID = 1737244) Speaker-P Speaker HA13/10K; Videoton; (ID = 1737245) Speaker-P
Use red slider bar for more.

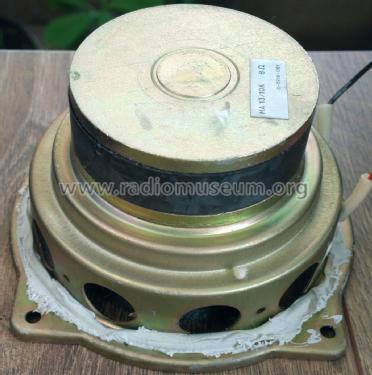

Speaker HA13/10K; Videoton; (ID = 1737243) Speaker-P
Videoton;: Speaker HA13/10K [Speaker-P] ID = 1737243 1400x1410
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker HA13/10K, Videoton; Székesfehérvár:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1979 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Speaker HA13/10K - Videoton; Székesfehérvár
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 134 x 134 x 76 mm / 5.3 x 5.3 x 3 inch
Notes

8 Ohm / 35 VA / 70 W.

Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
