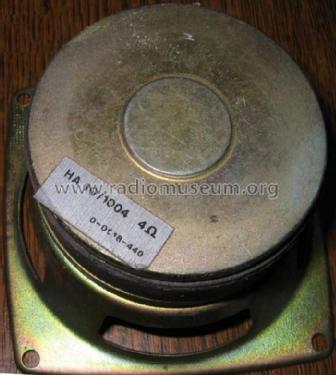

Speaker HA-1004

Speaker HA-1004; Videoton; (ID = 816571) Speaker-P Speaker HA-1004; Videoton; (ID = 816572) Speaker-P
Use red slider bar for more.
Speaker HA-1004; Videoton; (ID = 816571) Speaker-P
Videoton;: Speaker HA-1004 [Speaker-P] ID = 816571 752x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker HA-1004, Videoton; Székesfehérvár:
STS Archív.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1980 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Speaker HA-1004 - Videoton; Székesfehérvár
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 69 x 0 x 27 mm / 2.7 x 0 x 1.1 inch
Notes 4 Ohm.
Source of data -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
