Speaker HA 20/12K

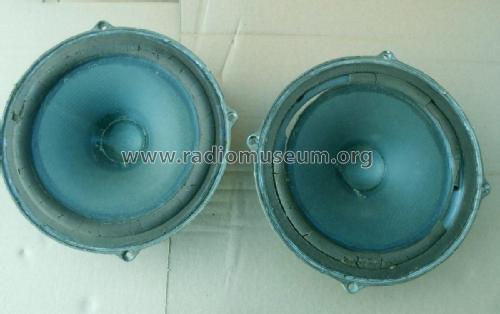

Speaker HA 20/12K; Videoton; (ID = 1793696) Speaker-P Speaker HA 20/12K; Videoton; (ID = 1793694) Speaker-P

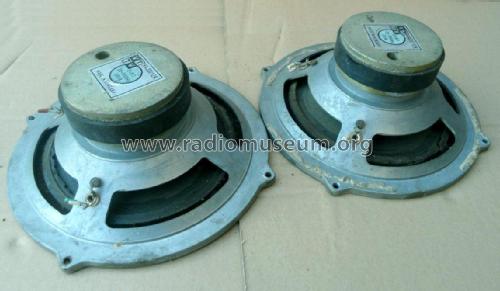

Speaker HA 20/12K; Videoton; (ID = 1793695) Speaker-P Speaker HA 20/12K; Videoton; (ID = 1793697) Speaker-P

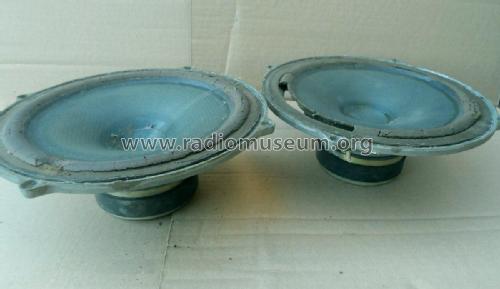

Speaker HA 20/12K; Videoton; (ID = 1793698) Speaker-P
Use red slider bar for more.

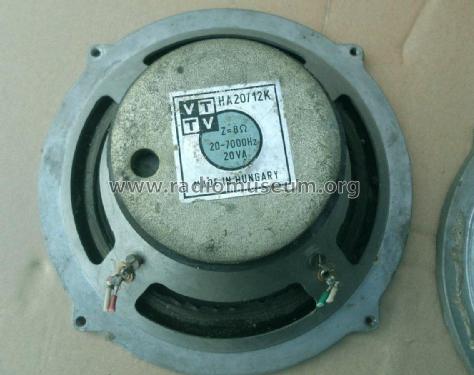

Speaker HA 20/12K; Videoton; (ID = 1793696) Speaker-P
Videoton;: Speaker HA 20/12K [Speaker-P] ID = 1793696 1139x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker HA 20/12K, Videoton; Székesfehérvár:
Thanks for Mr.Marion3t, Hungary, Salgótarján and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1964 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Speaker HA 20/12K - Videoton; Székesfehérvár
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 205 x 205 x 0 mm / 8.1 x 8.1 x 0 inch
Notes

20 VA / 8 Ohm. 20-7000 Hz.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
