Speaker HB12,5/1108/326

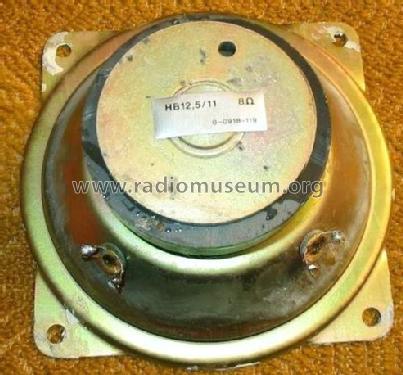

Speaker HB12,5/1108/326; Videoton; (ID = 816917) Speaker-P Speaker HB12,5/1108/326; Videoton; (ID = 816918) Speaker-P
Use red slider bar for more.
Speaker HB12,5/1108/326; Videoton; (ID = 816917) Speaker-P
Videoton;: Speaker HB12,5/1108/326 [Speaker-P] ID = 816917 401x381
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker HB12,5/1108/326, Videoton; Székesfehérvár:
STS Archív.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1979 ? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Speaker HB12,5/1108/326 - Videoton; Székesfehérvár
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 125 x 0 x 0 mm / 4.9 x 0 x 0 inch
Notes 8 Ohm.
Source of data -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Videoton; Székesfehérvár
Here you find 679 models, 635 with images and 177 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
