Speaker HC 16/9M

Speaker HC 16/9M; Videoton; (ID = 815924) Speaker-P Speaker HC 16/9M; Videoton; (ID = 844519) Speaker-P
Use red slider bar for more.
Speaker HC 16/9M; Videoton; (ID = 815924) Speaker-P

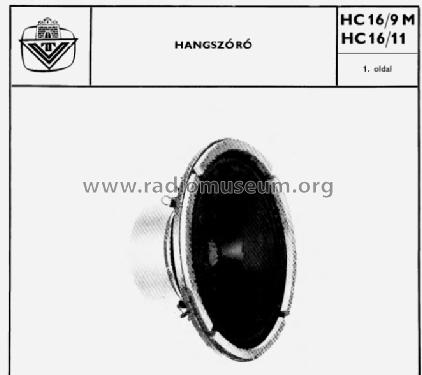

Videoton;: Speaker HC 16/9M [Speaker-P] ID = 815924 663x588
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker HC 16/9M, Videoton; Székesfehérvár:
Original techn. papers.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1962 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Speaker HC 16/9M - Videoton; Székesfehérvár
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 166 x 77 x 72 mm / 6.5 x 3 x 2.8 inch
Notes 3 VA / 8 Ohm, BaFe, 28000 Maxwell, 9000 Gauss. 70-16000 Hz.
Net weight (2.2 lb = 1 kg) 0.860 kg / 1 lb 14.3 oz (1.894 lb)
Source of data -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
