Speaker HC 20/10

Speaker HC 20/10; Videoton; (ID = 1793677) Speaker-P Speaker HC 20/10; Videoton; (ID = 815920) Speaker-P

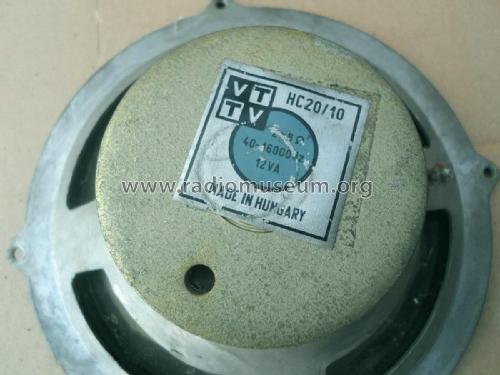

Speaker HC 20/10; Videoton; (ID = 844522) Speaker-P Speaker HC 20/10; Videoton; (ID = 1793678) Speaker-P
Speaker HC 20/10; Videoton; (ID = 1793681) Speaker-P Speaker HC 20/10; Videoton; (ID = 1793683) Speaker-P
Speaker HC 20/10; Videoton; (ID = 1793685) Speaker-P
Use red slider bar for more.
Speaker HC 20/10; Videoton; (ID = 1793677) Speaker-P
Videoton;: Speaker HC 20/10 [Speaker-P] ID = 1793677 901x847
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker HC 20/10, Videoton; Székesfehérvár:
Thanks for Mr.Marion3t, Hungary, Salgótarján and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1962 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Speaker HC 20/10 - Videoton; Székesfehérvár
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 205 x 88 x 79 mm / 8.1 x 3.5 x 3.1 inch
Notes 6 VA / 8 Ohm, BaFe, 49000 Maxwell, 10000 Gauss. 50-16000 Hz.
Net weight (2.2 lb = 1 kg) 1.180 kg / 2 lb 9.6 oz (2.599 lb)
Source of data -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
