Speaker HD6,5/8-PSS 8 Ohm

Speaker HD6,5/8-PSS; Videoton; (ID = 839076) Speaker-P Speaker HD6,5/8-PSS; Videoton; (ID = 1310056) Speaker-P
Speaker HD6,5/8-PSS; Videoton; (ID = 1310057) Speaker-P Speaker HD6,5/8-PSS; Videoton; (ID = 1310058) Speaker-P
Use red slider bar for more.
Speaker HD6,5/8-PSS; Videoton; (ID = 839076) Speaker-P

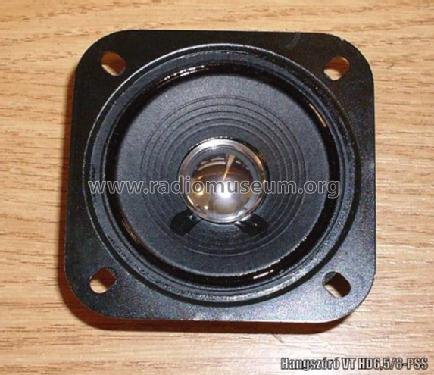

Videoton;: Speaker HD6,5/8-PSS [Speaker-P] ID = 839076 574x495
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker HD6,5/8-PSS 8 Ohm, Videoton; Székesfehérvár:
Original prospect.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1985 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Speaker HD6,5/8-PSS [8 Ohm] - Videoton; Székesfehérvár
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 65 x 65 x 22 mm / 2.6 x 2.6 x 0.9 inch
Notes 8 Ohm.
Net weight (2.2 lb = 1 kg) 0.1 kg / 0 lb 3.5 oz (0.22 lb)
Source of data -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
