Speaker HD 10/12

Speaker HD 10/12; Videoton; (ID = 815917) Speaker-P Speaker HD 10/12; Videoton; (ID = 844514) Speaker-P
Use red slider bar for more.
Speaker HD 10/12; Videoton; (ID = 815917) Speaker-P
Videoton;: Speaker HD 10/12 [Speaker-P] ID = 815917 659x538
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker HD 10/12, Videoton; Székesfehérvár:

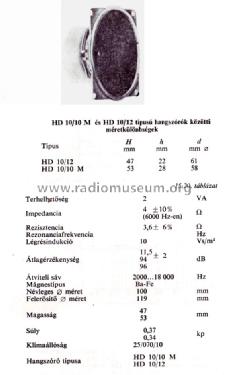

Original tech. paper.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1962 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Speaker HD 10/12 - Videoton; Székesfehérvár
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 100 x 61 x 47 mm / 3.9 x 2.4 x 1.9 inch
Notes 2 VA / 4 Ohm, BaFe, 12600 Maxvell, 11500 Gauss. 2000-18000 Hz.
Net weight (2.2 lb = 1 kg) 0.340 kg / 0 lb 12 oz (0.749 lb)
Source of data -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
