Star De Luxe RM4624 Exportversion Deutschland

Star De Luxe RM4624; Videoton; (ID = 1986207) Radio Star De Luxe RM4624; Videoton; (ID = 1986208) Radio
Star De Luxe RM4624; Videoton; (ID = 1986209) Radio Star De Luxe RM4624; Videoton; (ID = 1986210) Radio
Star De Luxe RM4624; Videoton; (ID = 1986211) Radio Star De Luxe RM4624; Videoton; (ID = 1986212) Radio
Star De Luxe RM4624; Videoton; (ID = 1986213) Radio
Use red slider bar for more.

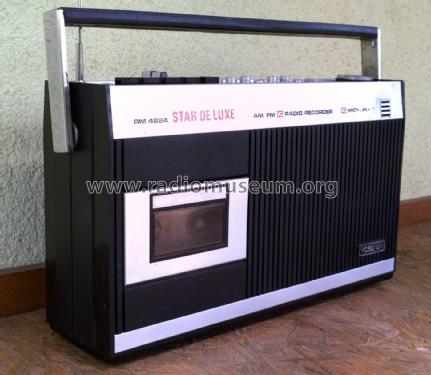

Star De Luxe RM4624; Videoton; (ID = 1986207) Radio
Videoton;: Star De Luxe RM4624 [Radio] ID = 1986207 1400x961
Select picture or schematic to display from thumbnails on the right and click for download.
For model Star De Luxe RM4624 Exportversion Deutschland, Videoton; Székesfehérvár:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1976 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 16: BF241 BF241 BF241 BF241 BF241 BF240 BF240 AC176 AC187 BC413 BC413 BC413 BC413 AC125 2SC828 2SB324 TAA691 TBA810
Main principle Superheterodyne (common); ZF/IF 465/10700 kHz; Export model
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (undistorted)
from Radiomuseum.org Model: Star De Luxe RM4624 [Exportversion Deutschland] - Videoton; Székesfehérvár
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 345 x 210 x 92 mm / 13.6 x 8.3 x 3.6 inch
Notes

Exportversion des RM4624 für deutschsprachige Länder.

Net weight (2.2 lb = 1 kg) 3.9 kg / 8 lb 9.4 oz (8.59 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
