HiFi Box Telesound 2000/2001

HiFi Box Telesound 2000/2001; Videoton; (ID = 863586) Speaker-P HiFi Box Telesound 2000/2001; Videoton; (ID = 863587) Speaker-P
HiFi Box Telesound 2000/2001; Videoton; (ID = 2074384) Speaker-P
Use red slider bar for more.
HiFi Box Telesound 2000/2001; Videoton; (ID = 863586) Speaker-P
Videoton;: HiFi Box Telesound 2000/2001 [Speaker-P] ID = 863586 800x549
Select picture or schematic to display from thumbnails on the right and click for download.
For model HiFi Box Telesound 2000/2001, Videoton; Székesfehérvár:
Thanks for Mr.Laczi Péter, Hungary!

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1979/1980 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: HiFi Box Telesound 2000/2001 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 275 x 390 x 200 mm / 10.8 x 15.4 x 7.9 inch
Notes

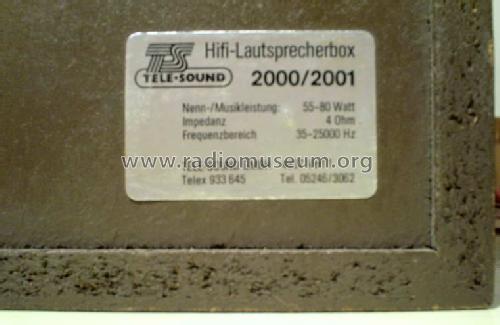

Made in Hungary - exported to Germany etc. 3 way loudspeaker, closed box, acoustic suspension. 35 Hz - 25 kHz, 55/80 W, 4 Ω.

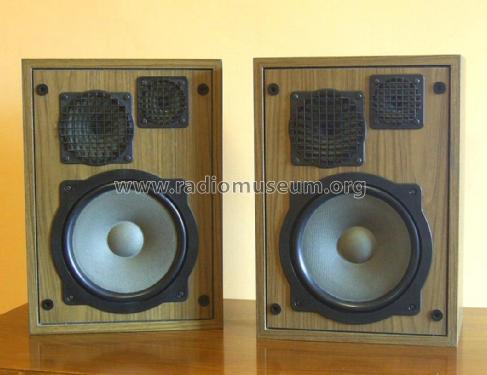

20 cm woofer (originally made with rubber surrounded braun woofers), 10 cm midrange, 6,5 cm tweeter.

Similar Speaker Box: Videoton DC2006A and Siemens RL-406.

Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
