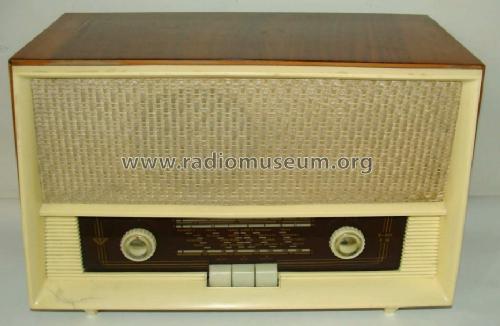

Transistor B037F/III

Videoton; Székesfehérvár

  • Year
  • 1961–1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 225370
    • Brand: VTTV

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Dry Batteries / 2 × 4,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.3 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Transistor B037F/III - Videoton; Székesfehérvár
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 400 x 260 x 180 mm / 15.7 x 10.2 x 7.1 inch
  • Notes
  •  Band: I. 185 - 576 m II. 26 - 52 m III. 13,3 - 27,2 m

  • Net weight (2.2 lb = 1 kg)
  • 8.5 kg / 18 lb 11.6 oz (18.722 lb)
  • Author
  • Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
