Velence de Luxe RA 2102

Velence de Luxe RA 2102; Videoton; (ID = 2450874) Radio
Velence de Luxe RA 2102; Videoton; (ID = 2216505) Radio Velence de Luxe RA 2102; Videoton; (ID = 1185079) Radio
Velence de Luxe RA 2102; Videoton; (ID = 1185080) Radio Velence de Luxe RA 2102; Videoton; (ID = 1185081) Radio
Velence de Luxe RA 2102; Videoton; (ID = 1185082) Radio Velence de Luxe RA 2102; Videoton; (ID = 1185083) Radio
Velence de Luxe RA 2102; Videoton; (ID = 2216506) Radio Velence de Luxe RA 2102; Videoton; (ID = 2216507) Radio
Velence de Luxe RA 2102; Videoton; (ID = 2216508) Radio Velence de Luxe RA 2102; Videoton; (ID = 2248487) Radio
Use red slider bar for more.
Velence de Luxe RA 2102; Videoton; (ID = 2216505) Radio
Videoton;: Velence de Luxe RA 2102 [Radio] ID = 2216505 1400x702
Select picture or schematic to display from thumbnails on the right and click for download.
For model Velence de Luxe RA 2102, Videoton; Székesfehérvár:
Perneky Sándor - Rádiómúzeum Alapítvány, Verőce, Hungary, radiomuzeum.hu

Country:  Hungary
Manufacturer / Brand:  Videoton; Székesfehérvár
Brand

VTTV
Year: 1968–1971 Category: Broadcast Receiver - or past WW2 Tuner

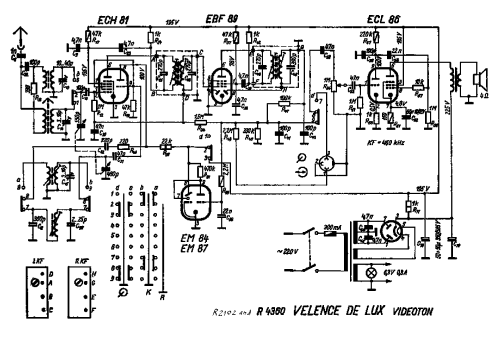

Valves / Tubes 5: ECH81 EBF89 ECL86 EZ80 EM84
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt

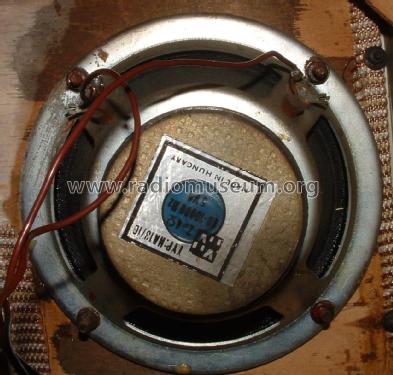

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 13 cm = 5.1 inch
Power out 1.3 W (unknown quality)
from Radiomuseum.org Model: Velence de Luxe RA 2102 - Videoton; Székesfehérvár
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 220 x 180 mm / 18.9 x 8.7 x 7.1 inch
Notes In some produced units the EZ80 tube was replaced by selen rectifier.
Net weight (2.2 lb = 1 kg) 5.6 kg / 12 lb 5.4 oz (12.335 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
