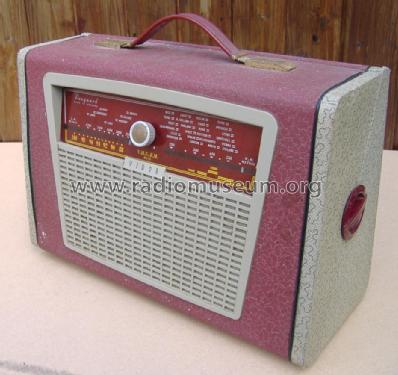

Vanguard CN436; Vidor Ltd.; Erith (ID = 1291524) Radio
Vidor Ltd.; Erith: Vanguard CN436 [Radio] ID = 1291524 933x877
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vanguard CN436, Vidor Ltd.; Erith (Kent)

Country:  Great Britain (UK)
Manufacturer / Brand:  Vidor Ltd.; Erith (Kent)
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: DF97 DF97 DF97 DF97 DAF96 DL96
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 1.5&90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Vanguard CN436 - Vidor Ltd.; Erith Kent
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 370 x 260 x 155 mm / 14.6 x 10.2 x 6.1 inch
Net weight (2.2 lb = 1 kg) 4.1 kg / 9 lb 0.5 oz (9.031 lb)
Price in first year of sale 21.00 GBP
Source of data -- Original-techn. papers.

Model page created by Peter Hoddow. See "Data change" for further contributors.



All listed radios etc. from Vidor Ltd.; Erith (Kent)
Here you find 143 models, 75 with images and 75 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
