• Country
• Spain

• Manufacturer / Brand
• Vieta Audio Electrónica S.A.; Barcelona

• Year
• 1978 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 273206

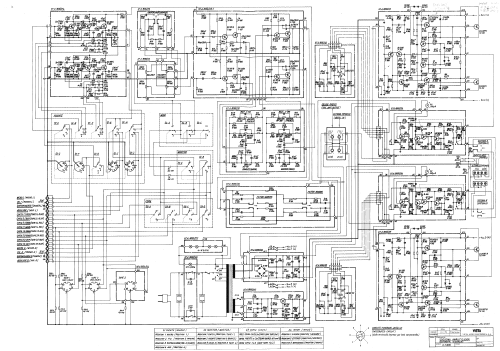

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 41

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 190 W (300 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Integrated Amplifier A-3095 - Vieta Audio Electrónica S.A.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 438 x 144 x 331 mm / 17.2 x 5.7 x 13 inch

• Notes

• Vieta Stereo Integrated Amplifier Model A-3095.
  Power output: 95 watts per channel into 8Ω (stereo)
  Frequency response: 20Hz to 20kHz
  Total harmonic distortion: 0.06%
  Damping factor: 55
  Input sensitivity: 1.7mV (mic), 1.85mV (MM), 25mV (DIN), 145mV (line)
  Signal to noise ratio: 60dB (mic), 58dB (MM), 79dB (line)
  2x VU Meter


  Semiconductors:
  41 x transistors, 32 x diodes, 4 x zener diodes

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
