PB60 Preamplifier

PB60 Preamplifier ; Viking of (ID = 1774087) Ampl/Mixer

PB60 Preamplifier ; Viking of (ID = 1774625) Ampl/Mixer

PB60 Preamplifier ; Viking of (ID = 1774626) Ampl/Mixer
PB60 Preamplifier ; Viking of (ID = 1774086) Ampl/Mixer
Use red slider bar for more.
PB60 Preamplifier ; Viking of (ID = 1774086) Ampl/Mixer
Viking of: PB60 Preamplifier [Ampl/Mixer] ID = 1774086 1400x627
Select picture or schematic to display from thumbnails on the right and click for download.
For model PB60 Preamplifier, Viking of Minneapolis, Inc., Minneapolis, MN - see also Telex:

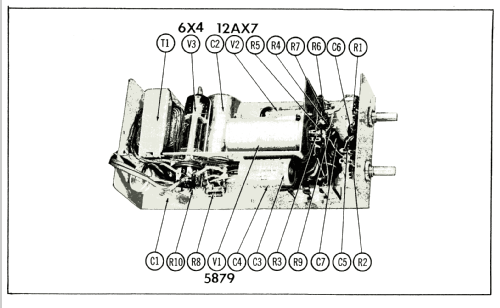

Picture from service manual

Country:  United States of America (USA)
Manufacturer / Brand:  Viking of Minneapolis, Inc., Minneapolis, MN - see also Telex
Year: 1956 ? Category: Audio Amplifier or -mixer
Valves / Tubes 3: 5879 12AX7 6X4
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: PB60 Preamplifier - Viking of Minneapolis, Inc.,
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

The PB60 Preamplifier is used for playback of recorded tapes.

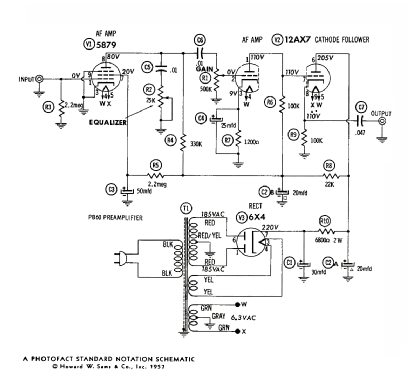

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 344 Folder 15 date 1 - 57)

Model page created by Dirk Taekels. See "Data change" for further contributors.
