Pic-Nic BE33671

Pic-Nic BE33671; Visseaux / Télévisso (ID = 2027329) Radio Pic-Nic BE33671; Visseaux / Télévisso (ID = 2027330) Radio
Pic-Nic BE33671; Visseaux / Télévisso (ID = 2027331) Radio Pic-Nic BE33671; Visseaux / Télévisso (ID = 318901) Radio
Pic-Nic BE33671; Visseaux / Télévisso (ID = 318902) Radio Pic-Nic BE33671; Visseaux / Télévisso (ID = 318903) Radio
Pic-Nic BE33671; Visseaux / Télévisso (ID = 318904) Radio Pic-Nic BE33671; Visseaux / Télévisso (ID = 318905) Radio
Pic-Nic BE33671; Visseaux / Télévisso (ID = 1870330) Radio
Use red slider bar for more.

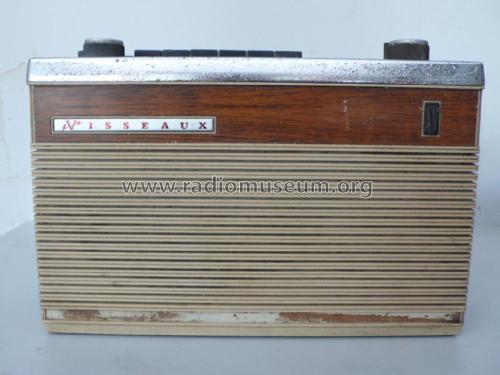

Pic-Nic BE33671; Visseaux / Télévisso (ID = 2027329) Radio
Visseaux / Télévisso: Pic-Nic BE33671 [Radio] ID = 2027329 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pic-Nic BE33671, Visseaux / Télévisso; Lyon / Paris

Country:  France
Manufacturer / Brand:  Visseaux / Télévisso; Lyon / Paris
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Dry Batteries / 2 × 4.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Pic-Nic BE33671 - Visseaux / Télévisso; Lyon /
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 286 x 176 x 85 mm / 11.3 x 6.9 x 3.3 inch
Notes Transistors: 2× SFT317, 2× SFT352, 2× SFT322.
Haut-Parleur Siare.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Source of data -- Collector info (Sammler)

Model page created by Laurent Farnieras. See "Data change" for further contributors.



All listed radios etc. from Visseaux / Télévisso; Lyon / Paris
Here you find 58 models, 38 with images and 10 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
