• Country
• France

• Manufacturer / Brand
• Vitus, Fernand; Paris

• Year
• 1925 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 114976

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: Europe II 306bis [modèle 1925] - Vitus, Fernand; Paris

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 460 x 230 x 220 mm / 18.1 x 9.1 x 8.7 inch

• Notes

• Gamme de réception de 150 à 4000 m.

  Ce modèle existe aussi en version avec 5 lampes No. 307.

  Le prix provient du catalogue Vitus du Radiozet Maastricht.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Price in first year of sale
• 155.00 HFL

• Mentioned in
• Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (page 374)

• Literature/Schematics (2)

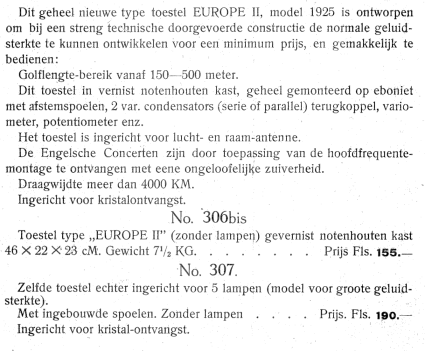

• -- Original prospect or advert (Catalogue Radiozet Maastricht)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
