• Country
• France

• Manufacturer / Brand
• Vitus, Fernand; Paris

• Year
• 1926

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 69026

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage and/or dry batteries / 4 & 80 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

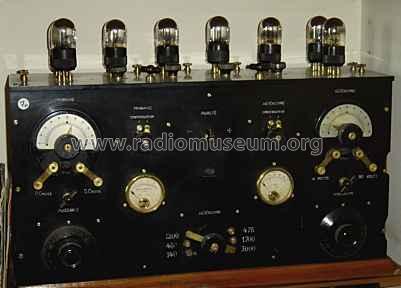

• Model: Ultra-Hétérodyne B 361 - Vitus, Fernand; Paris

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 630 x 420 x 230 mm / 24.8 x 16.5 x 9.1 inch

• Notes

• Two meters. Also available with removable cover for the valves (wooden, with glass windows).

  Frequency range 100 kHz to 3 MHz (100 m to 3'000 m).

  This model requires external speaker or headphone.

  Ce modèle est répertorié dans le Guide Biraud comme ayant 6 lampes, ce qui est une erreur.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 4,625.00 FF

• External source of data
• Reinhard Bittner

• Source of data
• -- Original prospect or advert

• Mentioned in
• TSF Antique 1921 à 1927 (Pages 186-187)

• Literature/Schematics (1)
• Le Guide du Collectionneur TSF Biraud/Foster, Vol. II (page 376)
