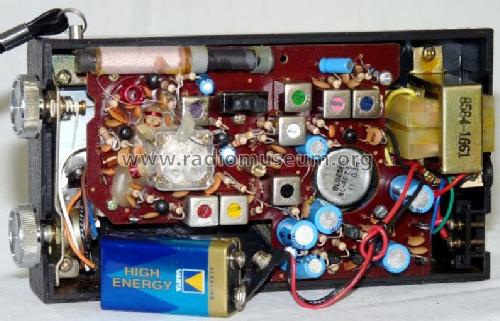

1010; Vivanco AG (ID = 683930) Radio 1010; Vivanco AG (ID = 683928) Radio
1010; Vivanco AG (ID = 683929) Radio
Use red slider bar for more.
1010; Vivanco AG (ID = 683930) Radio
Vivanco AG: 1010 [Radio] ID = 683930 820x545
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1010, Vivanco AG (electronic); Ahrensburg

Country:  Germany
Manufacturer / Brand:  Vivanco AG (electronic); Ahrensburg
Year: 1984 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: 1010 - Vivanco AG electronic;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 163 x 91 x 52 mm / 6.4 x 3.6 x 2 inch
Notes Kopfhöreranschluß über 3,5 mm Klinkenbuchse, Teleskopantenne 65 cm, Ferritantenne 7 cm
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
