- Country
- United States of America (USA)
- Manufacturer / Brand
- V-M (VM) (Voice of Music) Corporation; Benton Harbor (MI)
- Year
- 1952
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 125405
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 110 - V-M VM Voice of Music
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 10 x 5.25 x 12.5 inch / 254 x 133 x 318 mm
- Notes

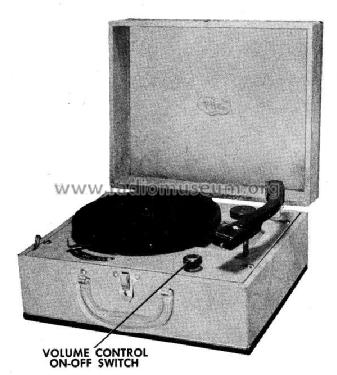

- The V-M Model 110 is an AC Operated 2 Tube Phono Amplifier with 3-Speed Record Player.
- Source of data
- -- Collector info (Sammler)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 1-53, Set 191, Folder 19)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
