- Country
- United States of America (USA)
- Manufacturer / Brand
- V-M (VM) (Voice of Music) Corporation; Benton Harbor (MI)
- Year
- 1946
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 64662
SAMS Photofact
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Special material, described in the notes.
- from Radiomuseum.org
- Model: 800 - V-M VM Voice of Music
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 14 x 0 x 13.5 inch / 356 x 0 x 343 mm
- Notes
- Base plate of heavy gauge steel, finished in baked-on brown hammerloid with plastic trim.
- External source of data
- Ernst Erb

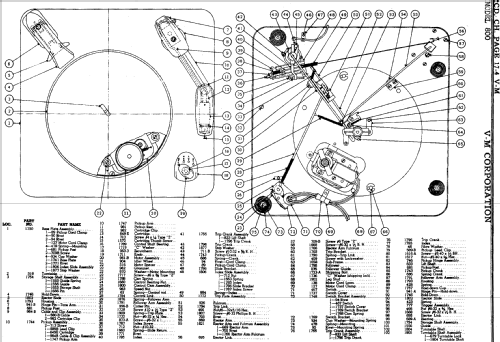

- Circuit diagram reference
- Rider's Perpetual, Volume 17 = 1948 and before
- Mentioned in
- Radio Retailing (Radio & Television R.) (July 1946 page 78.)
