Mini'VOC 3

Mini'VOC 3 ; VOC, VOC-Centrad; (ID = 2510061) Equipment Mini'VOC 3 ; VOC, VOC-Centrad; (ID = 2510063) Equipment
Mini'VOC 3 ; VOC, VOC-Centrad; (ID = 2510062) Equipment Mini'VOC 3 ; VOC, VOC-Centrad; (ID = 2510064) Equipment
Mini'VOC 3 ; VOC, VOC-Centrad; (ID = 2510065) Equipment
Use red slider bar for more.
Mini'VOC 3 ; VOC, VOC-Centrad; (ID = 2510061) Equipment
VOC, VOC-Centrad;: Mini'VOC 3 [Equipment] ID = 2510061 1400x960
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mini'VOC 3, VOC, VOC-Centrad; Annecy:

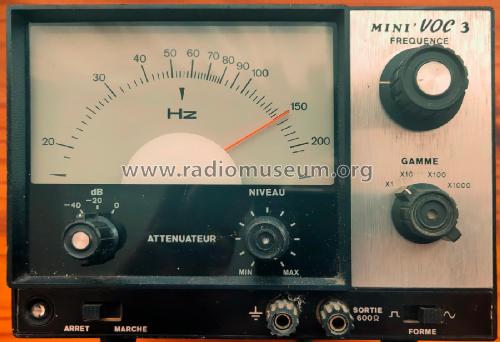

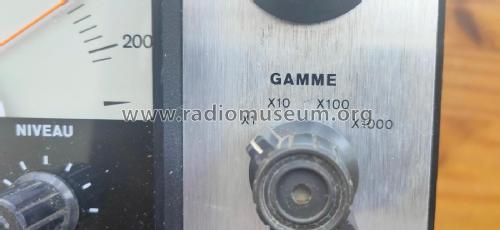

Face avant du générateur

Country:  France
Manufacturer / Brand:  VOC, VOC-Centrad; Annecy
Year: 1972 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 9: 2SK30 2SA561 2SC734 2SC734 2SA561 2SC458 2SC458 2SC734 2SA561
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Mini'VOC 3 - VOC, VOC-Centrad; Annecy
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 185 x 145 x 240 mm / 7.3 x 5.7 x 9.4 inch
Notes

Gamme de fréquences de 20 Hz à 200 kHz en 4 gammes, onde sinus ou carré.

Tension de sortie maximum 10 V
Impédance 600 Ohms
Atténuateur 0, -20, -40 dB et réglage continu par potentiometre.

Entrée synchro en face arrière.

Ce modèle est identique au Trio AG-202.

Made in Japan.

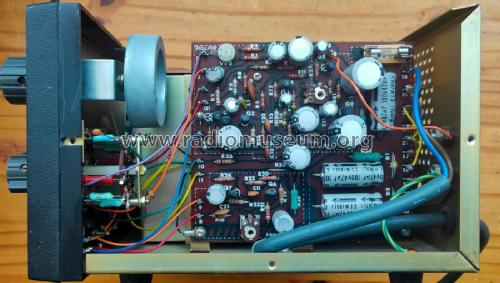

Ci-dessous le type complet des transistors et diodes qui équipent cet appareil:
Q1 : 2SK30A-Y - Q2 : 2SA56I-Y
Q3 : 2SC734-Y - Q4 : 2SC734-Y
Q5 :2SA561-Y - Q6/Q7 : 2SC458-C
Q8 : 2SC734 - Q9 : 2SA561-Y
D1/D2 : VO6B

Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)
Price in first year of sale 670.00 FRF

Model page created by Jean-Pierre Ambroise. See "Data change" for further contributors.
