• Year
  • 1960
  • Category
  • Citizen Band Equipment
  • Radiomuseum.org ID
  • 136905

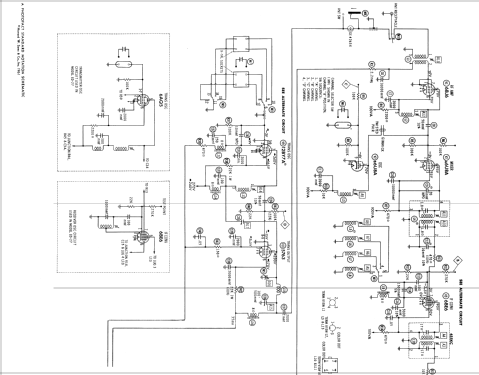

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Number of Transistors
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Line / Batteries (any type) / 110 - 120 AC / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: ED-27-6 - Vocaline Company of America,
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Sams photofact, set 531, folder 15, date 5-61 features the Vocaline models ED-27-6, ED-27-12, ED-27M-6 and ED-27M-12 as the same schematic. The difference is the power supply.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
