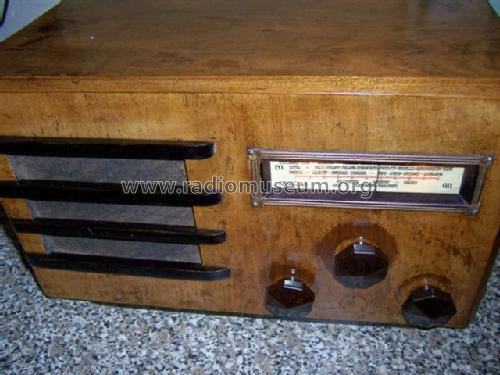

A5; Voltram, SADAR S.A.D (ID = 1398515) Radio A5; Voltram, SADAR S.A.D (ID = 1398519) Radio
A5; Voltram, SADAR S.A.D (ID = 1398522) Radio A5; Voltram, SADAR S.A.D (ID = 2543628) Radio
A5; Voltram, SADAR S.A.D (ID = 2543629) Radio A5; Voltram, SADAR S.A.D (ID = 2543630) Radio
A5; Voltram, SADAR S.A.D (ID = 2543631) Radio
Use red slider bar for more.
A5; Voltram, SADAR S.A.D (ID = 1398515) Radio
Voltram, SADAR S.A.D: A5 [Radio] ID = 1398515 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model A5, Voltram, SADAR (S.A.D.A.R.), Société Anonyme d'Appareillage Radio-Électrique; Paris:
poste numero 3282

Country:  France
Manufacturer / Brand:  Voltram, SADAR (S.A.D.A.R.), Société Anonyme d'Appareillage Radio-Électrique; Paris
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 2A7 58 2B7 47 80
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: A5 - Voltram, SADAR S.A.D.A.R.,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 400 x 340 x 200 mm / 15.7 x 13.4 x 7.9 inch
Notes

Antifading. Sélectivité 8 kHz.

Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Price in first year of sale 695.00 FRF
Literature/Schematics (1) -- Original prospect or advert (L'Intransigeant, 16.09.1935)

Model page created by Peter Hoddow. See "Data change" for further contributors.



All listed radios etc. from Voltram, SADAR (S.A.D.A.R.), Société Anonyme d'Appareillage Radio-Électrique; Paris
Here you find 14 models, 6 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
