Elektrosignal ; Voronezh (ID = 1421341) Radio

Elektrosignal ; Voronezh (ID = 1673406) Radio

Elektrosignal ; Voronezh (ID = 1673407) Radio

Elektrosignal ; Voronezh (ID = 1673408) Radio

Elektrosignal ; Voronezh (ID = 1673409) Radio
Elektrosignal ; Voronezh (ID = 1673405) Radio
Use red slider bar for more.
Elektrosignal ; Voronezh (ID = 1673405) Radio
Voronezh: Elektrosignal [Radio] ID = 1673405 741x1000
Select picture or schematic to display from thumbnails on the right and click for download.
For model Elektrosignal, Voronezh Elektrosignal Radio Works:
Deckblatt des Original-Handbuchs zum Gerät

Country:  Soviet Union
Manufacturer / Brand:  Voronezh Elektrosignal Radio Works
Year: 1945 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: СБ-242 2К2М 2К2М 2Ж2М 2Ж2М 2Ж2М
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 2 & 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Elektrosignal - Voronezh Elektrosignal Radio
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 480 x 320 x 260 mm / 18.9 x 12.6 x 10.2 inch

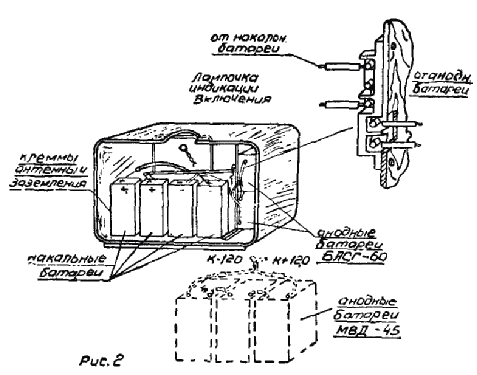

Notes First tube battery radio in USSR after WW2. Possible two type dry battery variants, inside or outside radio set. This radio analog - same manufacturer battery radio, see "Rodina".
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Mentioned in E.A.Levitin "Spravocnik po radiovesciatelnym prijomnikam" Moscow 1960
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from Voronezh Elektrosignal Radio Works
